Patching emu8086

Overview

Emu8086 combines an advanced source editor, assembler, disassembler, software emulator (Virtual PC) with debugger, and step by step tutorials. This program is extremely helpful for those who just begin to study assembly language. It compiles the source code and executes it on emulator step by step.

Inspect

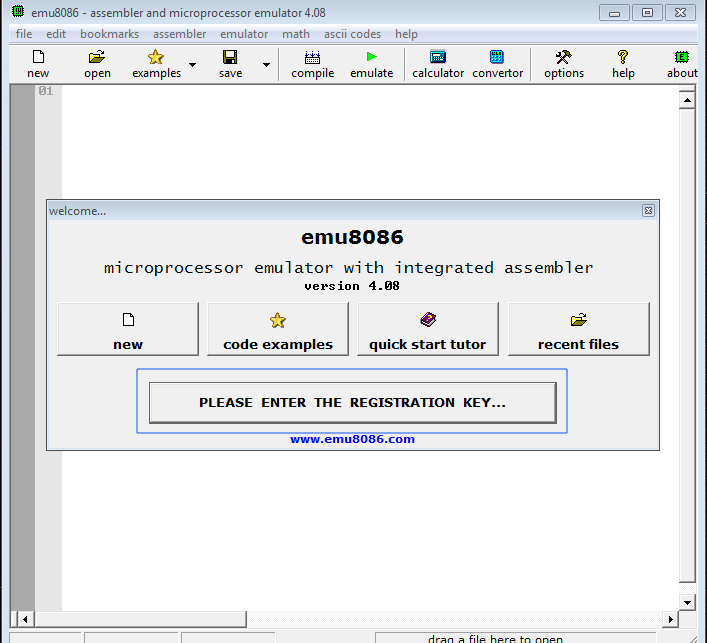

Once you open the app you will see a registartion button

main window

Click the button will open a small window with another button to buy a license with the followin links

https://shopper.mycommerce.com/checkout/product/2189-7
https://shopper.mycommerce.com/checkout/product/2189-9
https://shopper.mycommerce.com/checkout/product/2189-11

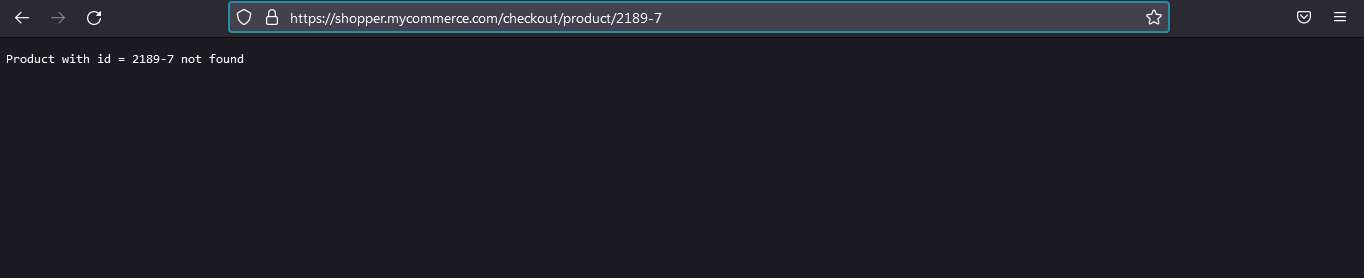

All of them are not working and i have done some search to make sure that this program is not maintained any more

Links

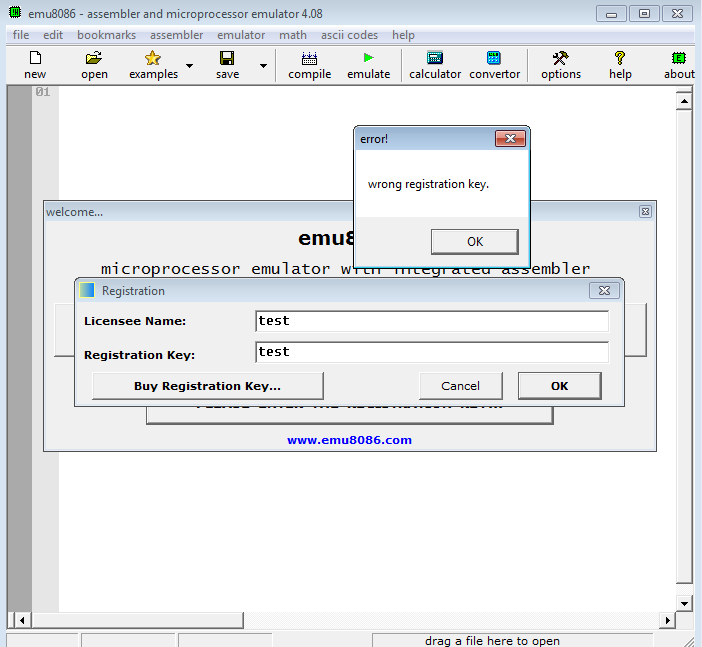

Fishing out inspection by trying to register with dummy name and key

Register with dummy key

x32gdb

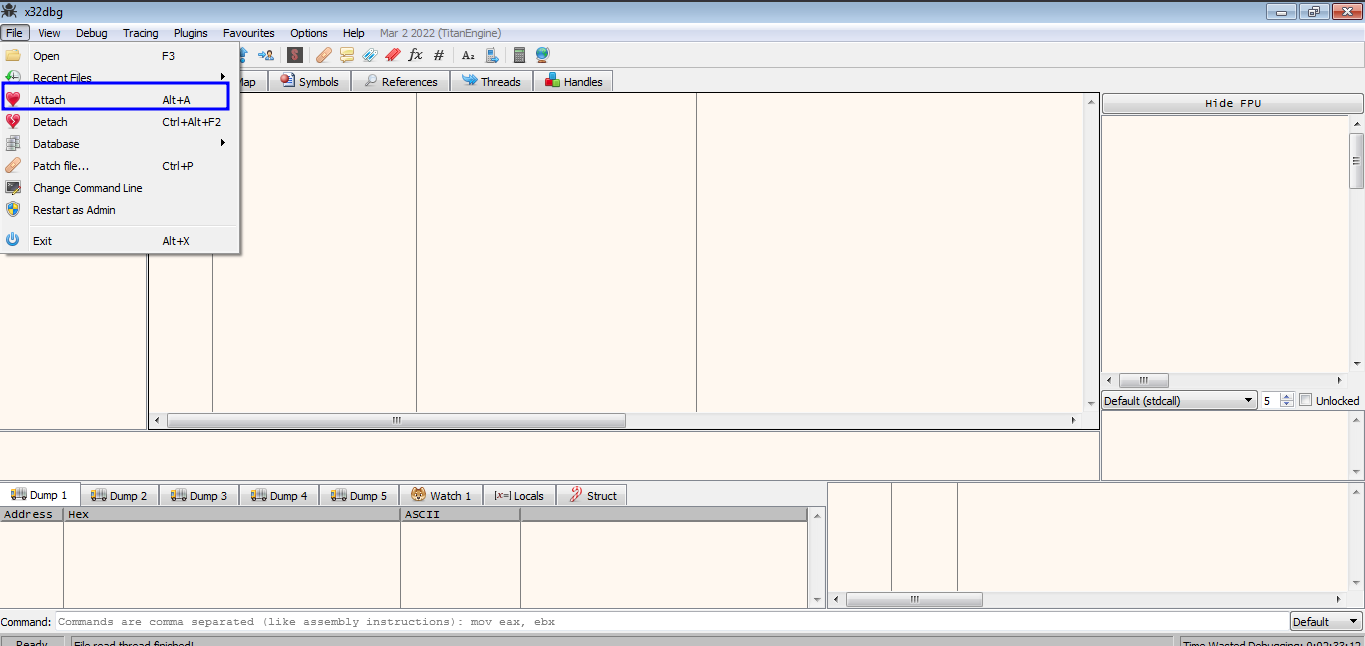

Start x32gdb while emu is running and attach it to the the debugger

Attach to debugger

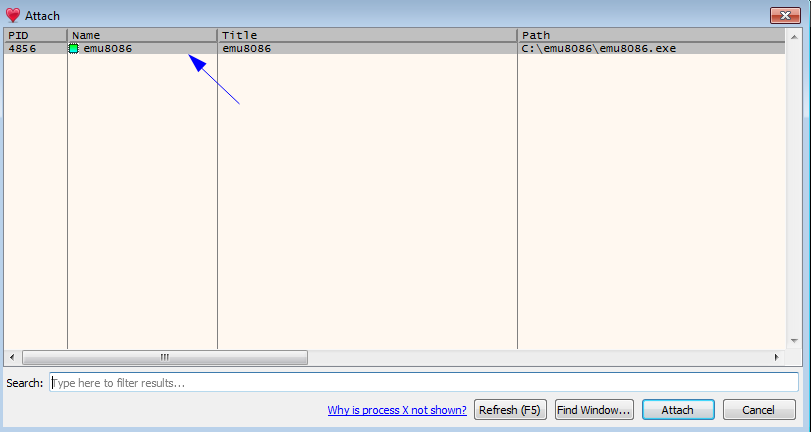

Select program to attach

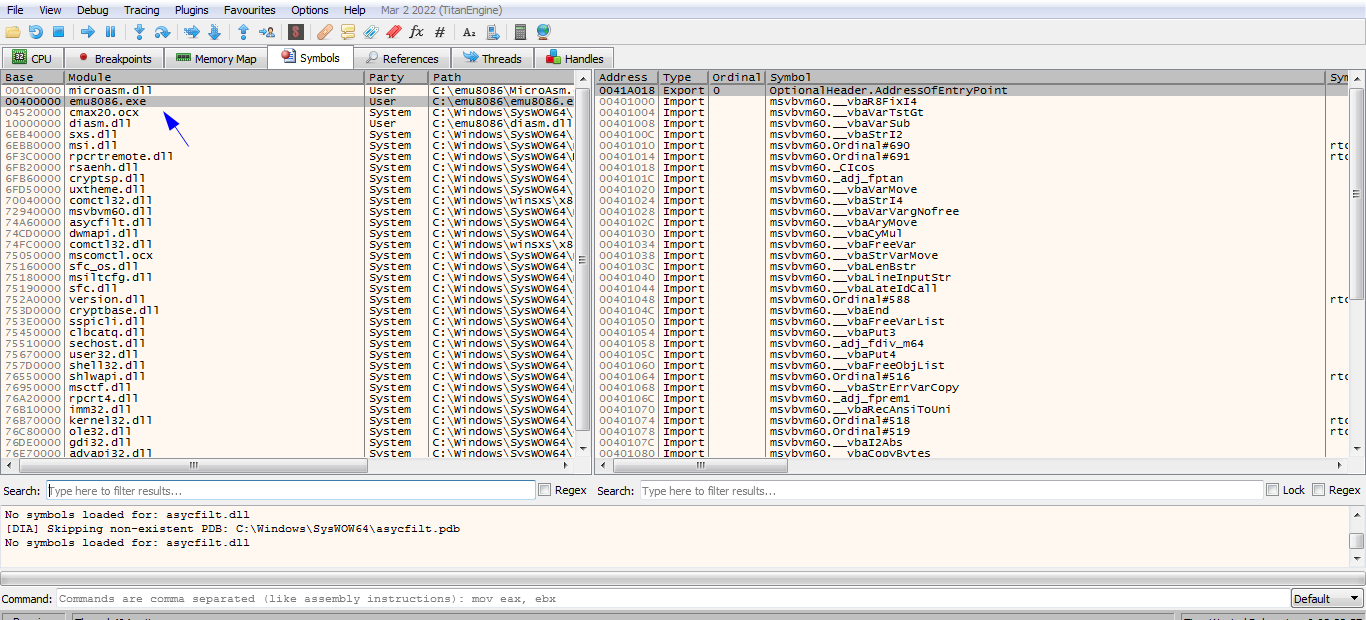

Then from select view -> Modules to list all the loaded modules

Modules

After this double click emu8086.exe

emu8086.exe

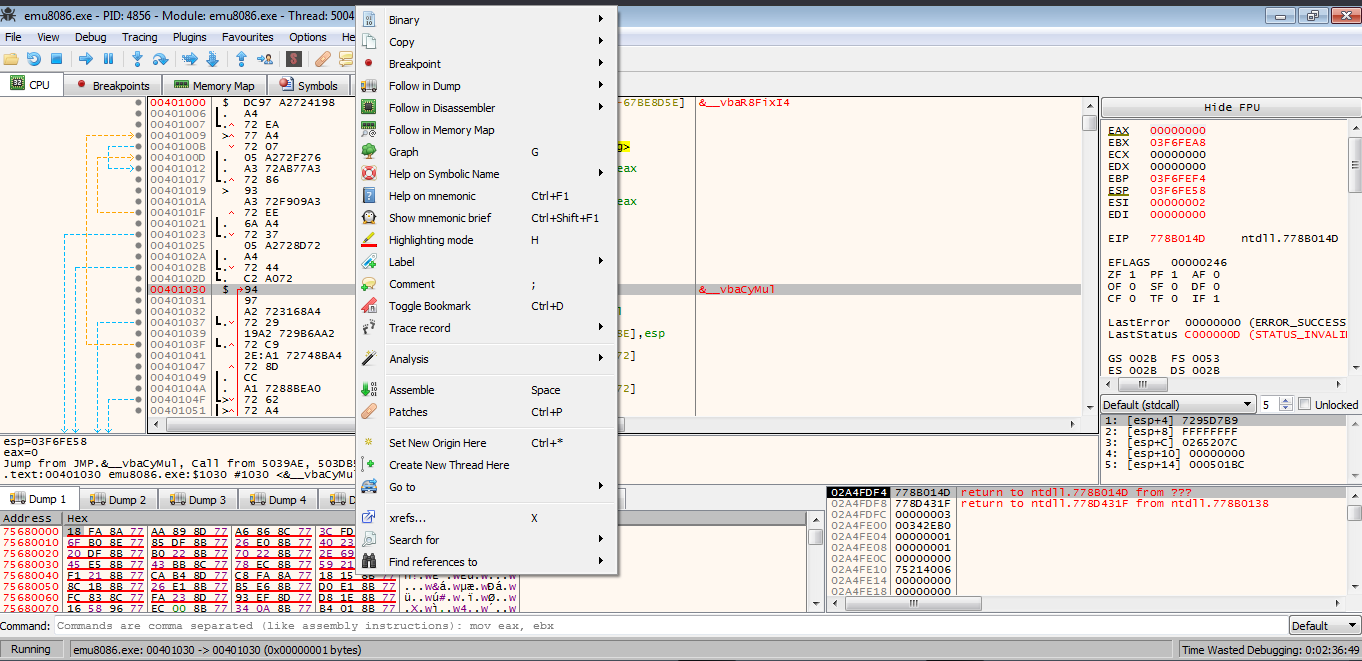

Now right click search for -> current module -> string refrences

find strings

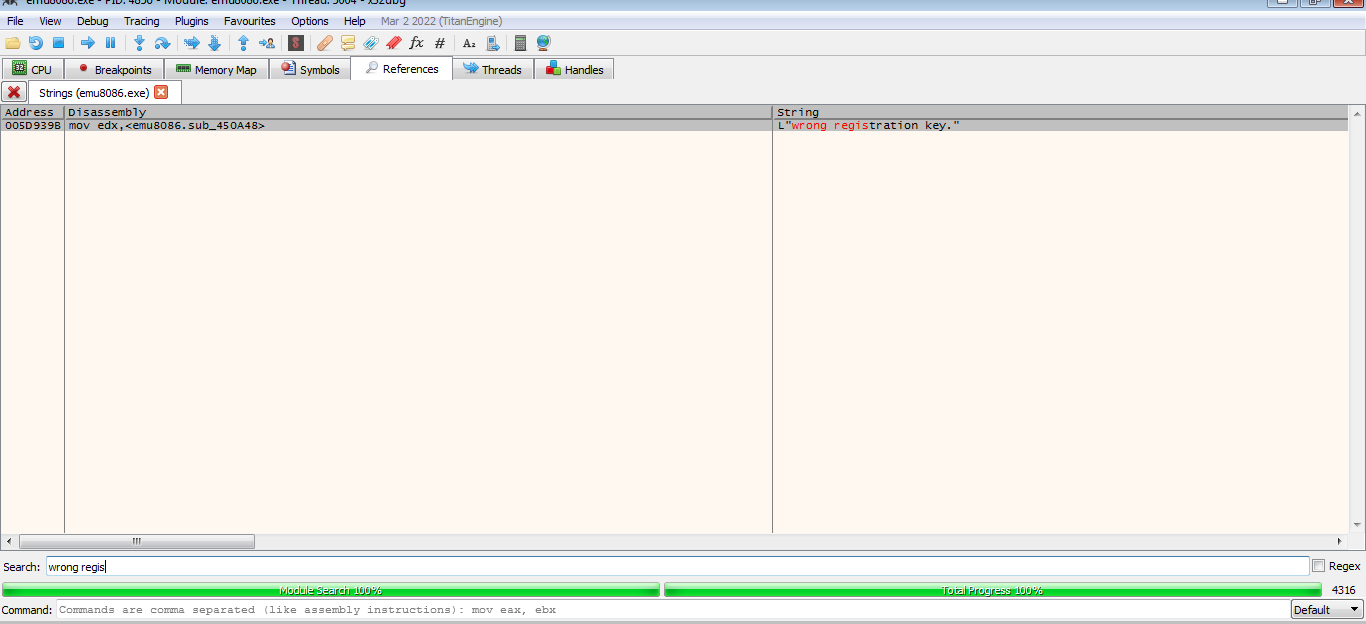

Seaching for Wrong registartion key as this message was shown to us

find registartion string

Double click it to show it in the program assembly and pressing Ctrl+A to analyze the module

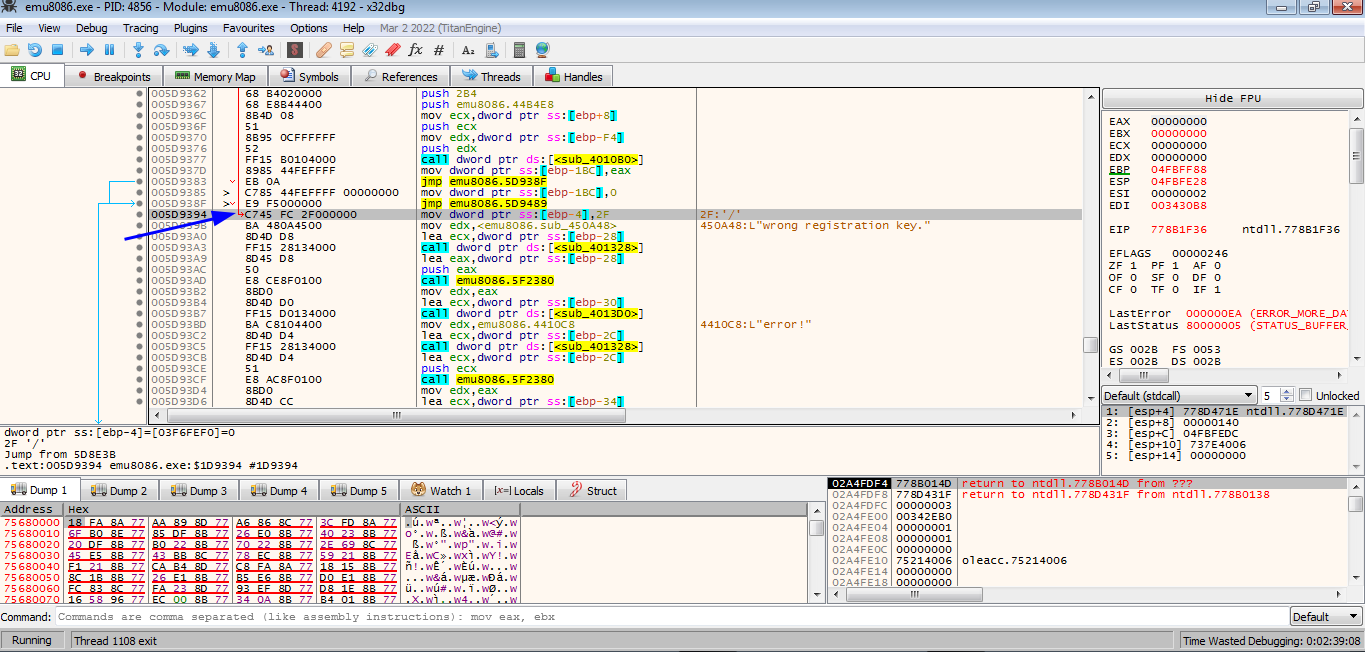

And notice there is a jump to the instruction just before our string usage

jump destination

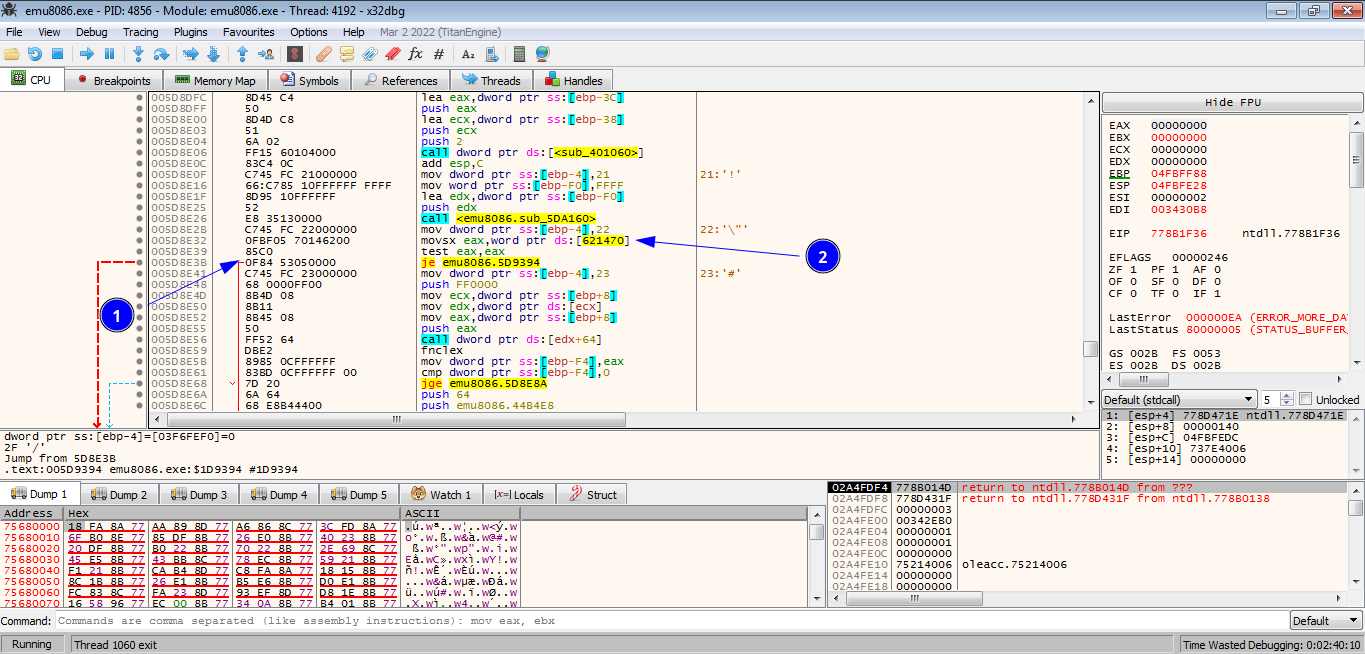

Scrolling to the jump instruction and the jump is based on a value stored at the address 621470

jump source

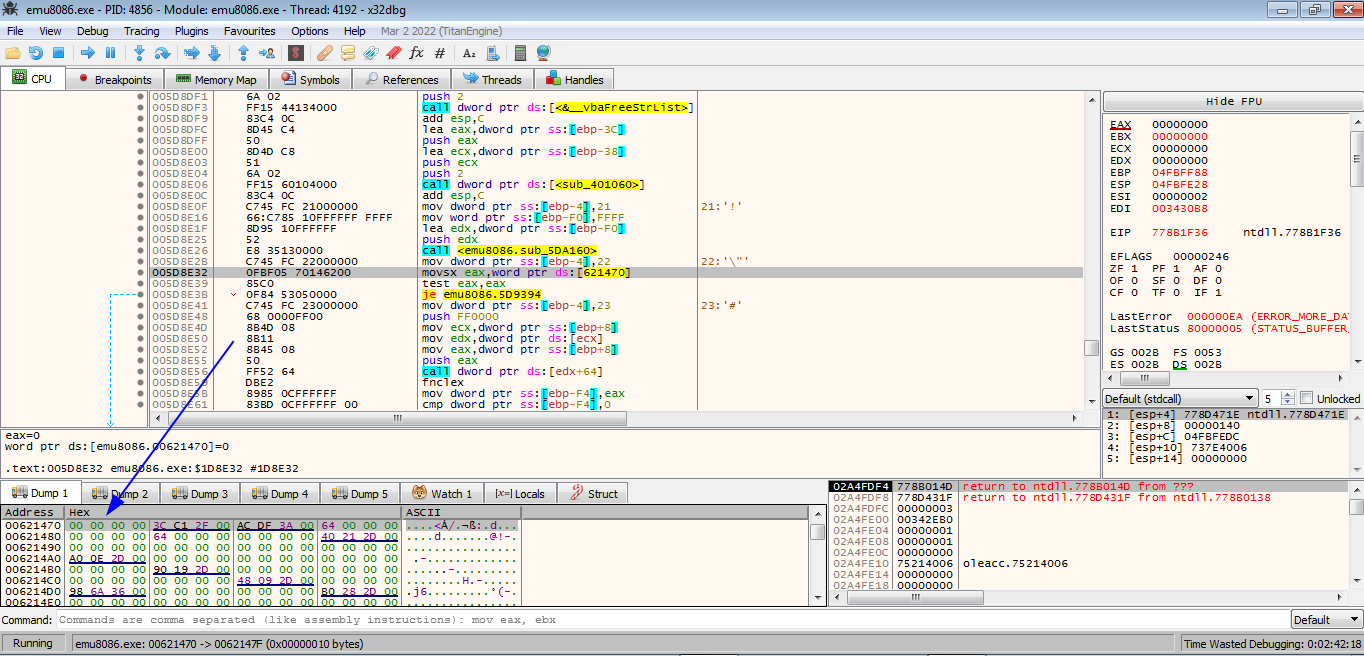

Right click the address select follow in dump -> constant emu8086.00621470

memory value

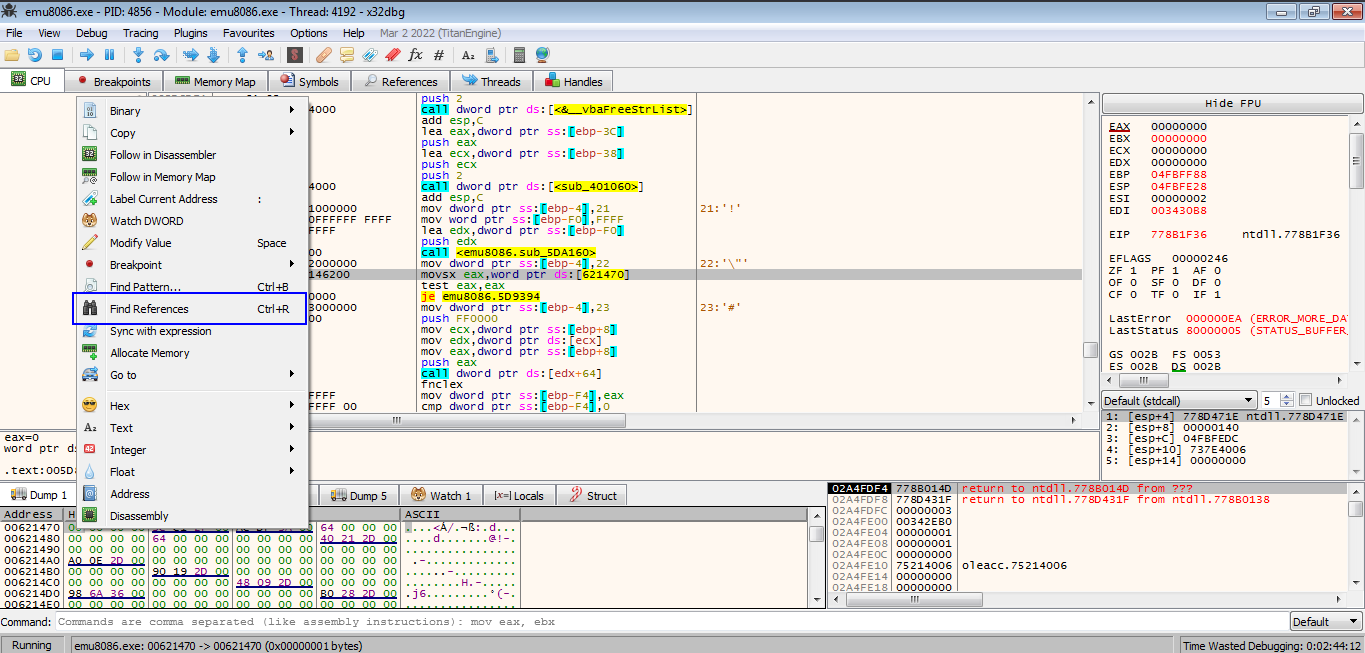

Right click the memory and search for refrences

Find Refrences

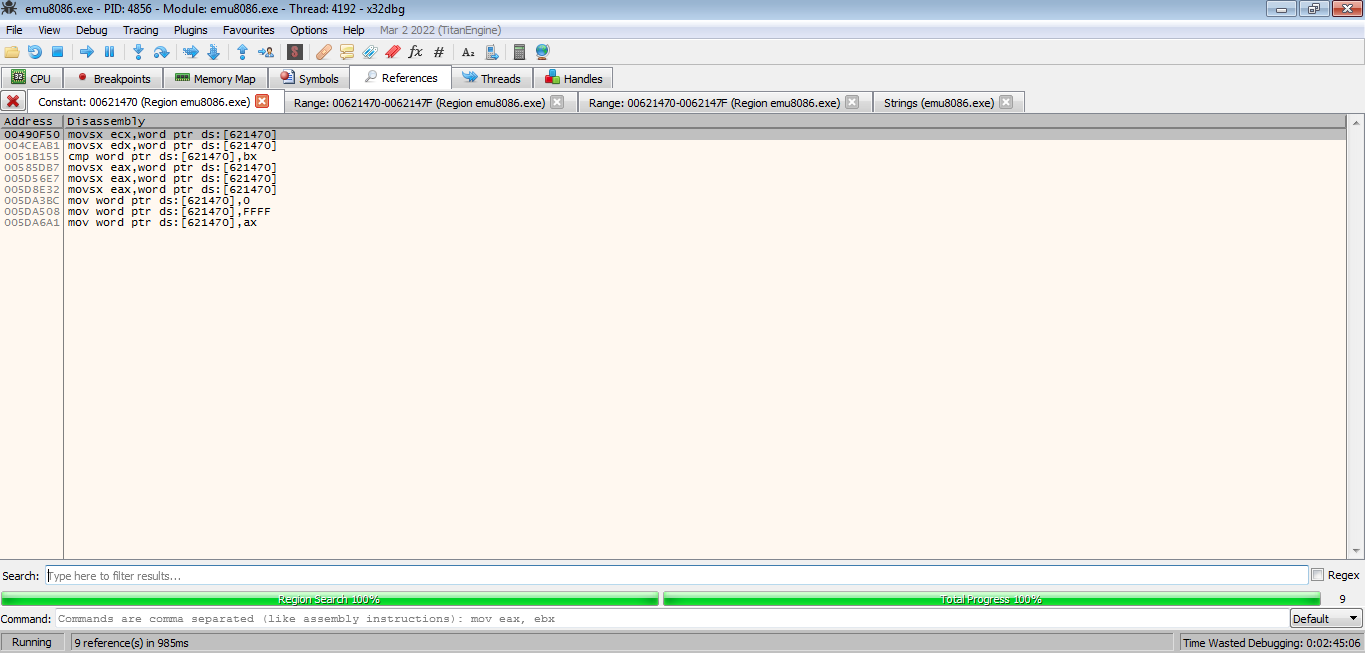

The last refrence is looking promising ;)

Refrences List

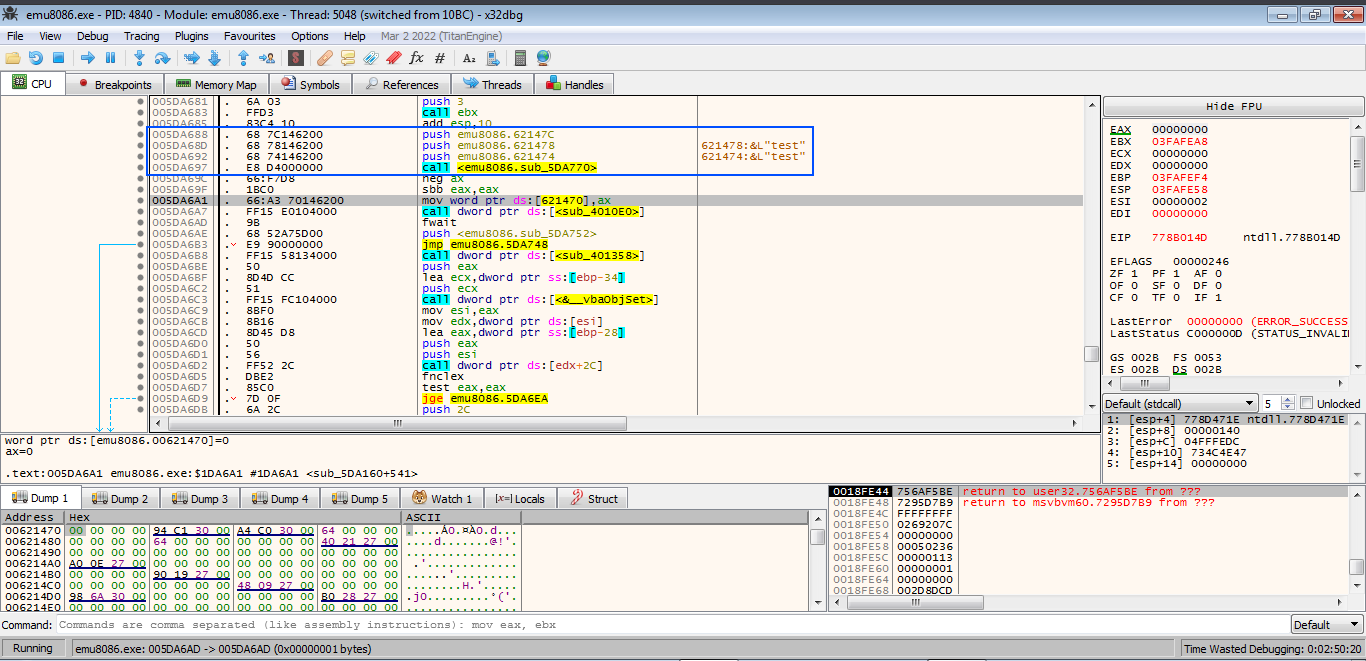

Follow it in assembly and here we find a function call just before it that took our username and key before

And followed by 5 bytes before writing ax to the memory

Verification function call

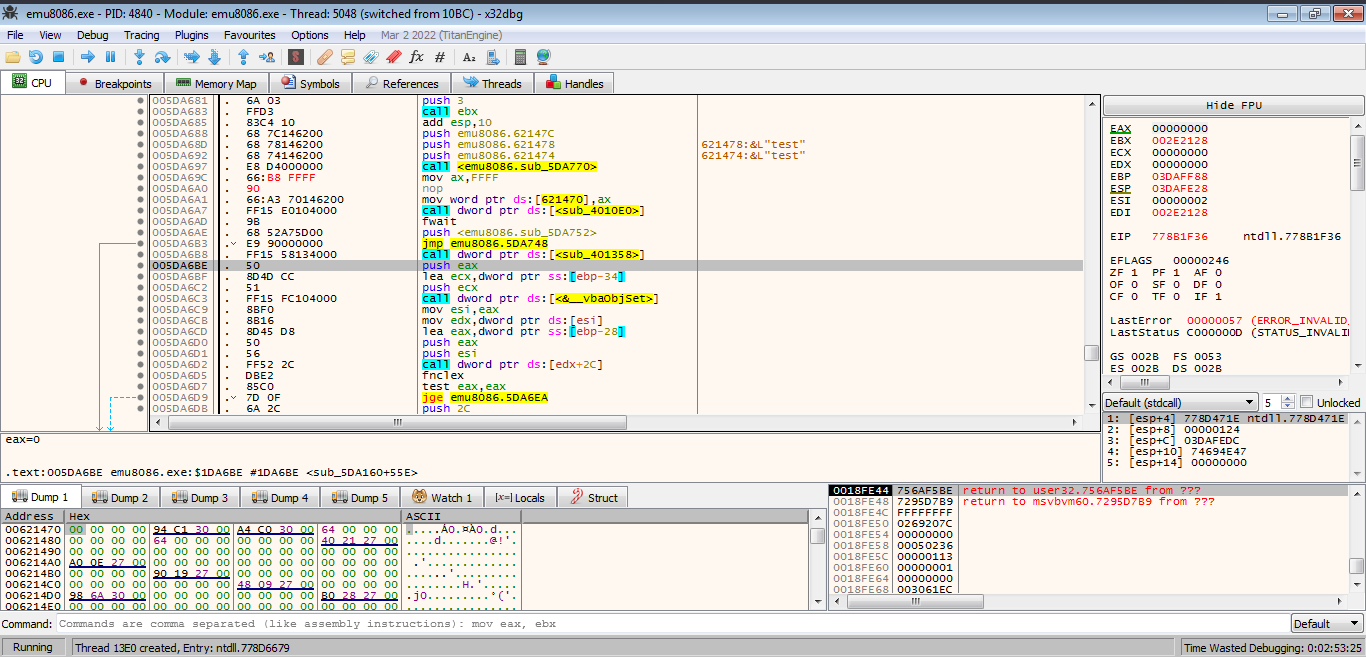

Using online assembly to opcode defuse with this instruction mov ax, 0xFFFF to set value 0xFFFF at ax register

The opcode of it is 66B8FFFF and this can be written into 4 bytes but we have 5 and leaving the last byte will misinterpret the next instruction so we batch it with 0x90 opcode of no operation nop

To edit press Ctrl+e

Patch emu

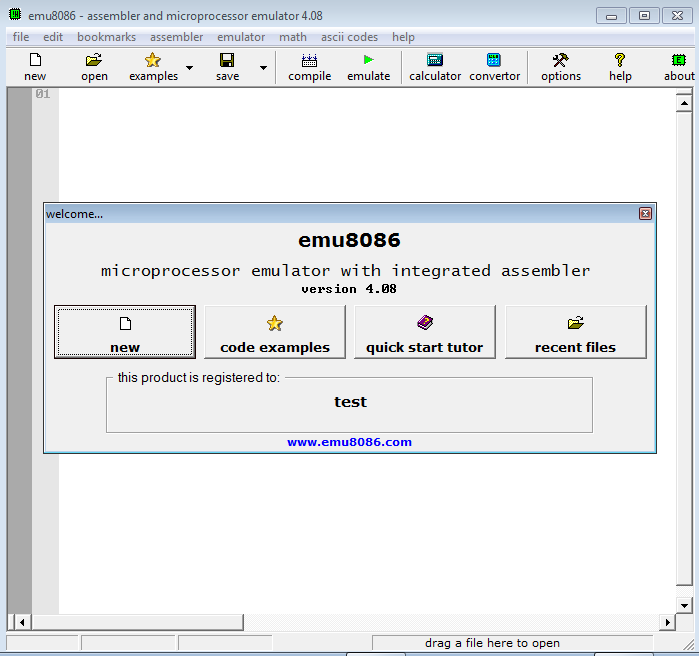

Apply the patch and start the patched version and suddenly it is register to test but how did it knows

Registered to test

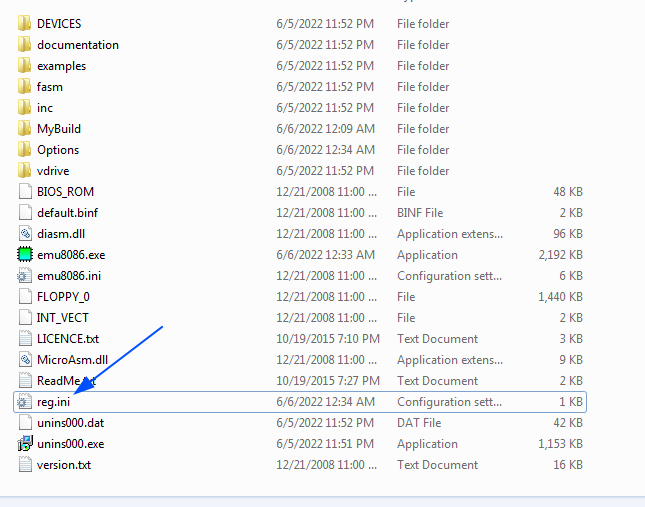

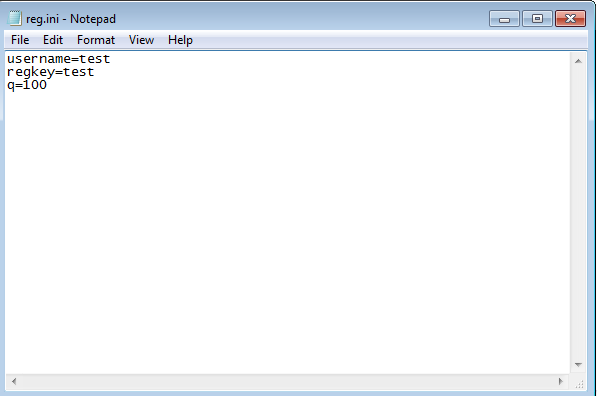

Looking at the emu files and file called reg.ini newly created and contain user name and key from our first attemp

Assume that it will read the file each time it start and check if username and key sotred in it are valid

Change the name at this file will change the name at the program ;)

reg.ini

reg.ini

Create Patch With C

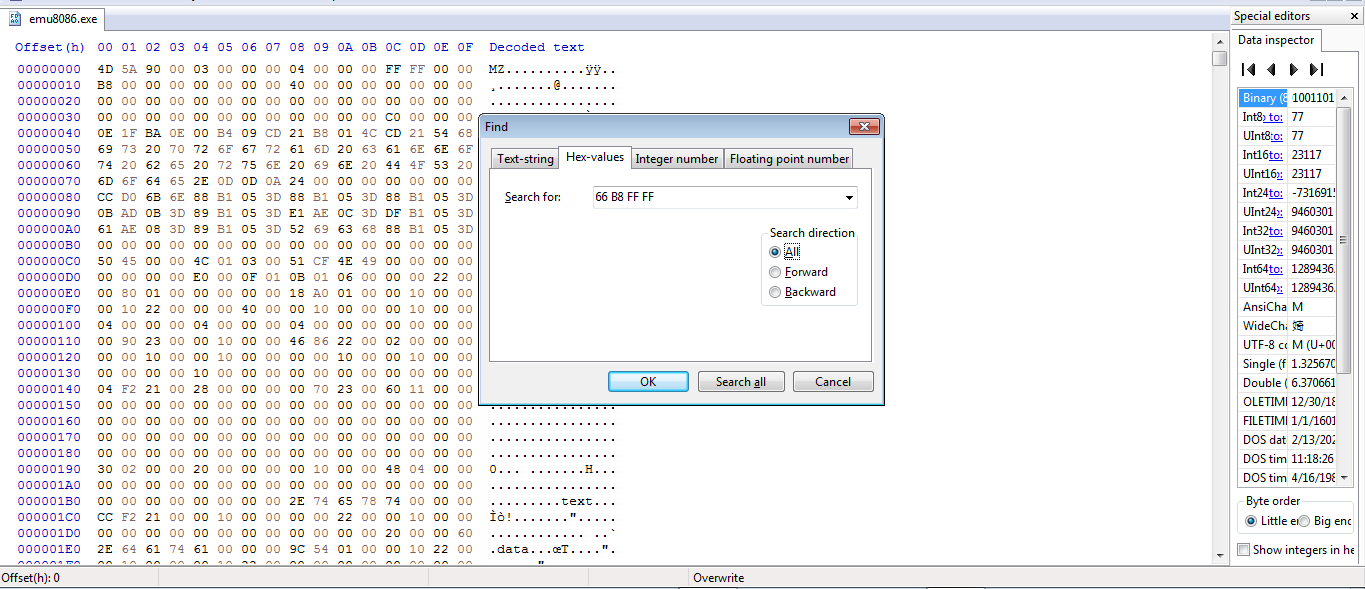

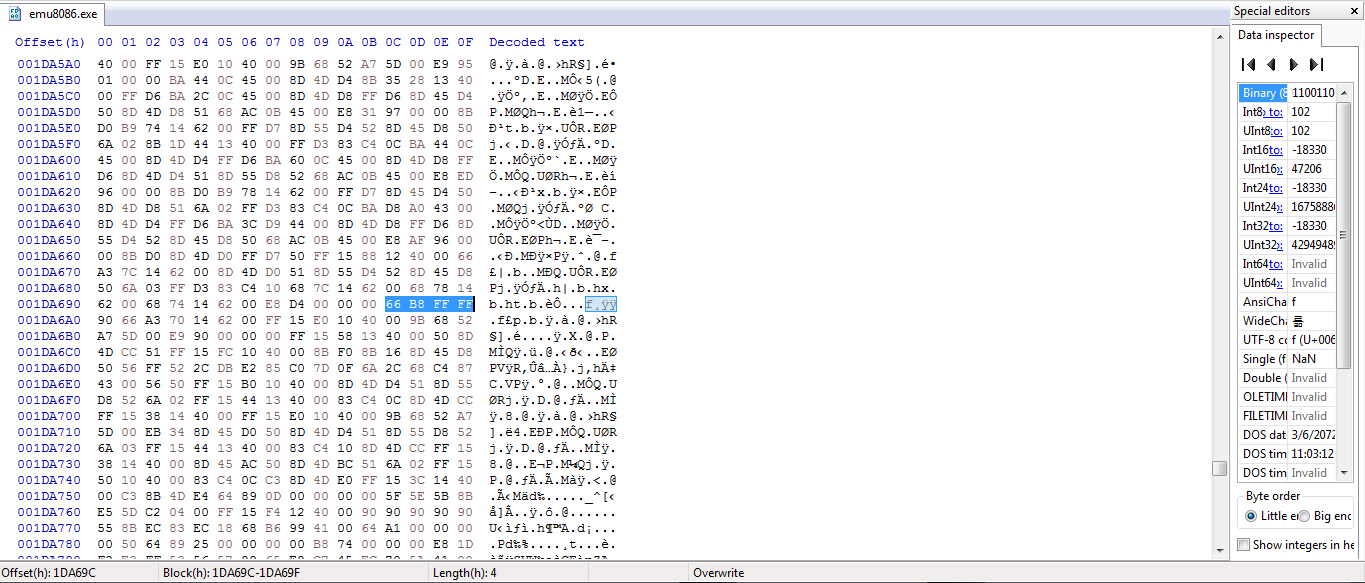

Open the patched version with hxd and search for 66 B8 FF FF to get the offset of the them on the exe

hxd

The offset is 0x1DA69D

offset

Write a c prgram to open the exe and move to our offset

unsigned char bytes[] = {0xB8, 0xFF, 0xFF, 0x90};
int offset = 0x1DA69D;

FILE *fileH = fopen ("emu8086.exe", "r+");
fseek(fileH, offset, SEEK_SET)

After this write our bytes

fwrite(&bytes, sizeof(bytes), sizeof(bytes[0]), fileH)

And for fun open reg.ini and write my name ;)

char reg[] = "username=Patched By Mahmoud Ramadan\nregkey=x\nq=100";
FILE *fileH2 = fopen ("reg.ini", "w");

fwrite(&reg, sizeof(reg), sizeof(reg[0]), fileH2)

Find full patch code at emupatch

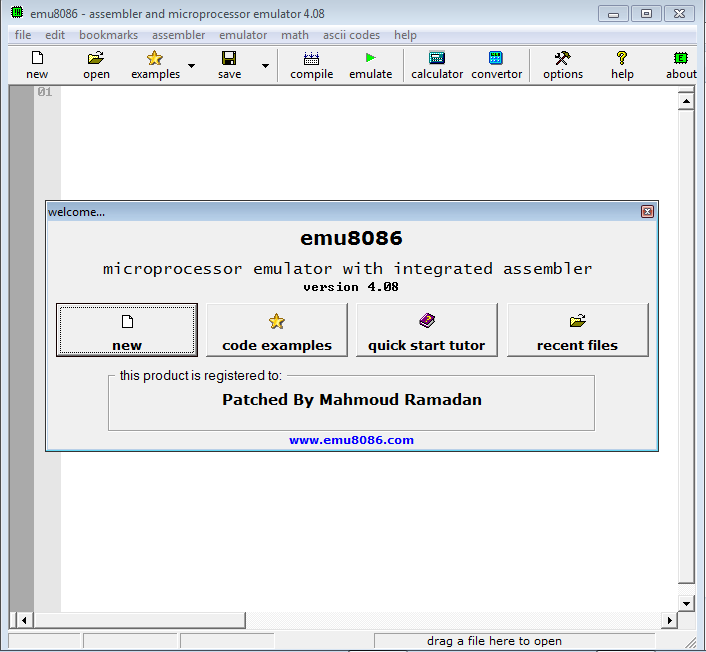

Test the patch and it works

patch test
